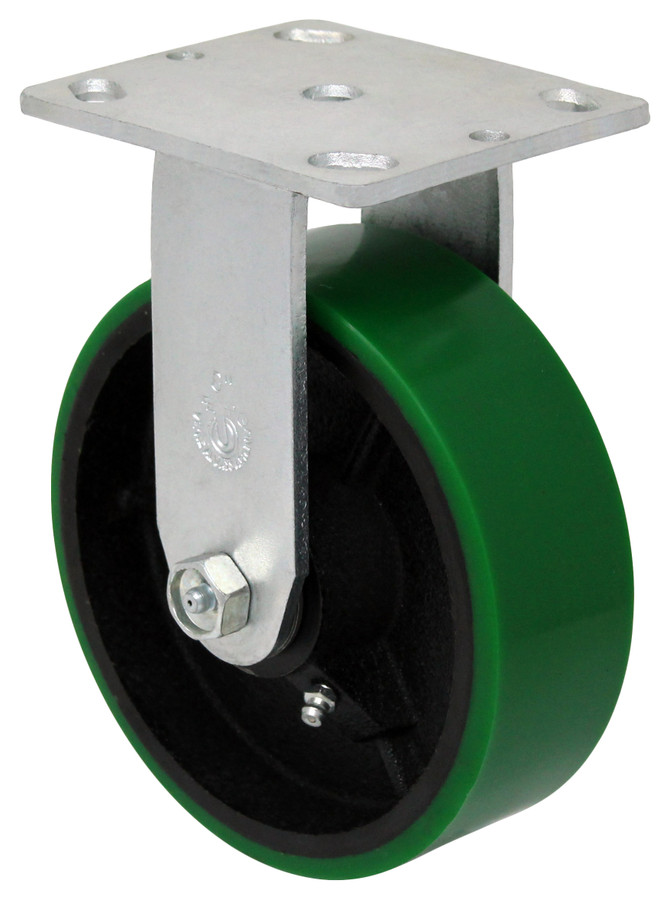

27/28 – MEDIUM DUTY SERIES (OEM PREFERRED SERIES) – 1,250 LB • Double ball raceway with 5/8" kingbolt • Features wheels with 1-1/2" and 2" tread widths • Large selections of wheels, bearings and brake options • Matching total-locking casters available DT and FT series • Grease fitting in raceway and axle for maintenance • Bright zinc finish • Majority of this series and wheel types are NSF listed
PRODUCT SPECIFICATIONS |
WHEEL MATERIAL | POLYURETHANE ON CAST IRON |
WHEEL DIAMETER + WIDTH | 5"X2" |
HEIGHT | 6-1/2 |
CAPACITY LBS | 1100 |
COLOR / FINISH | ZINC |
BOLT SPACING INCHES | 2-5/8" X 3-5/8" SLOTTED TO 3X3 |
PLATE SIZE | 4" X 4-1/2" |
Manufacturer’s Limited Warranty Policy: Durable Superior Casters® number one pledge is Quality. Our comprehensive Engineering Test Lab performs product tests to meet the standards of the Institute of Caster and Wheel Manufacturers (ICWM), the National Sanitation Foundation (NSF), Restriction of Hazardous Substance (RoHS) and the special requirements of virtually all manufacturers. Durable Superior Casters® products are warranted against defects in material and workmanship for different periods of time from the date of purchase. This warranty does not cover damages caused by misapplication, misuse, abuse, modification, improper installation, or lack of regular lubrication maintenance. Any product that is claimed to be defective and is returned to any one of Durable Superior Casters® warehouses with prior approval will be repaired or replaced free of charge (excluding freight and installation). This warranty is exclusive and there are no other warranties, express or implied, such as an implied warranty of merchantability or fitness for particular purpose. This remedy is the sole remedy in contract, tort or otherwise, and Durable Superior is not liable for incidental, consequential or special damages. Three-Year Warranty: We offer a three year limited warranty on complete casters only; assembled and shipped by us in the following series: 45/46, 47/48, 49/50, 57/58, 61/62, 63/64, 65/66, D1/R1, D2/R2, D3/R3, and D4/R4 with Forged Steel, Ductile, Ultra-Poly, ErgoLastomer, Solid Steel, Solid Steel V-Groove, Champion and PolyFlexon wheels, equipped with either precision ball bearings or tapered bearings. Warranty does not apply on any hybrid casters using a combination of Durable Superior Casters® parts with any other manufacturer’s parts. General Warranty: All Durable Superior Casters® products not mentioned above are covered with a one-year limited warranty from the date of purchase. Durable’s engineering department has been building a library of 3D models and 2D drawings for our customer’s use. If you have a requirement please contact your distributor or Durable customer service representative. Engineering Services, Continued Improvement and Innovation We Are Always Around! Since first opening our doors over 25 years ago, Durable Superior Casters has become one of the best known caster and wheel companies in North America thanks to quality manufacturing, competitive pricing, responsive customer service, and relentless pursuit of innovation in new product development.
