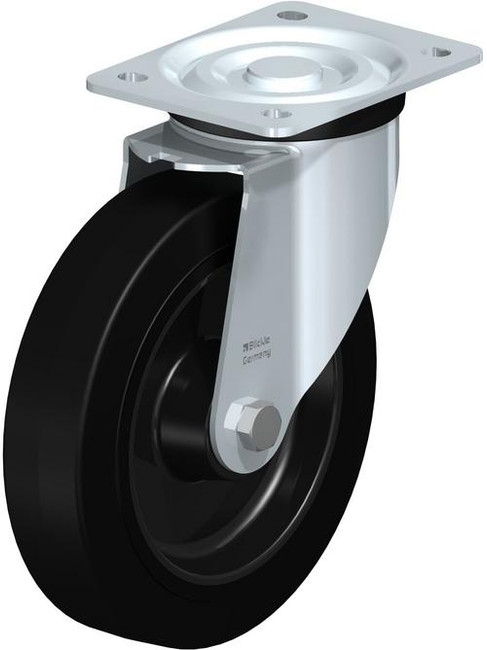

L-VWPP 200R-ST
Bracket: L series
- pressed steel, zinc-plated, blue-passivated, Cr6-free
- double ball bearing in the swivel head
- strong central kingpin (from wheel Ø 150 mm)
- swivel head seal
- minimum swivel head play and smooth rolling characteristic and increased service life due to the special dynamic Blickle riveting process
Wheel: VWPP series
- tyre: soft rubber "Blickle Soft", hardness 50 Shore A, colour black (wheel Ø 260 mm with additional hard rubber core)
- rim: high-quality polypropylene, impact resistant, colour black
Other features:
- high chemical resistance to many aggressive substances, except oils
- operating temperature: -20 °C to +60 °C, reduced load capacity over +30 °C
- wheel Ø 260 mm with additional hard rubber core
- puncture-proof alternatives for pneumatic tyres
Rolling resistance: good
Operating noise / floor surface preservation : excellent
Tread and tyre hardness : 50 Shore A
| Wheel Ø (D) | 200 mm | |
| Wheel width | 50 mm | |
| Load capacity at 4 km/h | 100 kg | |
| Load capacity (static) | 250 kg | |
| Bearing type | roller bearing | |
| Total height (H) | 235 mm | |
| Plate size | 140 x 110 mm | |
| Bolt hole spacing | 105 x 75–80 mm | |
| Bolt hole Ø | 11 mm | |
| Offset (F) | 63 mm | |
| Profile | round profile | |
| Temperature resistance min | -20 °C | |
| Temperature resistance max | 60 °C | |
| Tread and tyre hardness | 50 Shore A | |
| Unit weight | 3.446 kg | |
