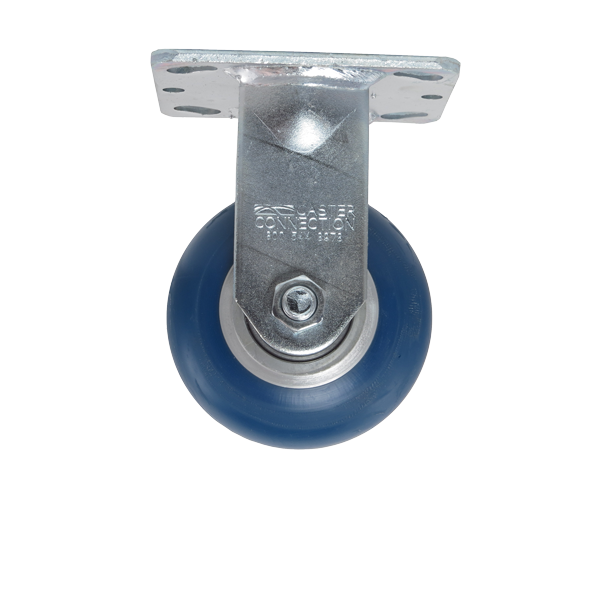

This 4" x 2" CC Apex ESD Rigid Caster (electrostatic dissipating) is made of the same ergonomic, noise reducing, and durability qualities as the original CC Apex, but with the added benefit of containing electrostatic dissipating properties throughout the wheel’s polyurethane tread. These wheels are ideal for clean room environments and other areas where electrostatic build up is an issue. CC Apex ESD is available in 2” and 1-1/4” wide.
Electrostatic dissipative material conducts electricity, with a surface resistivity of equal to or greater than 10^5 ohms, but less than 10^12 ohms.
This material is prescribed for discharge-safe areas because it allows static electricity to flow through the caster wheels and into conductive flooring.
It is highly recommended that all casters on a cart (or other fixture) in an electrostatic discharge-safe area are electrostatic dissipative, in order to strive for maximum contact with conductive flooring.
For more info, check out Caster Wheel Types.
- Anti Static:
- Yes;application=Manual Push/Pull,Tow Lines"
- Bearing Type:
- 6203 RS Ball Bearing
- Bolt Hole Pattern:
- 2-5/8 Inches x 3-5/8 Inches slotted to 3 Inches x 3 Inches
- Caster Type:
- Rigid
- Core Material:
- Aluminum
- Wheel Durometer:
- 87 Shore A (+/- 5)
- Floor Type:
- Varied-Indoor
- Fork Finish:
- Zinc Plated
- Mounting Bolt Size:
- 3/8 Inches
- Mounting Type:
- Top Plate
- Noise Reduction:
- Yes
- Overall Height:
- 5-5/8 Inches
- Temperature Range:
- -25 to +180 F
- Top Plate Bolt Hole:
- 4 Inches X 4-1/4 Inches
- Tread Style:
- Donut Tread
- Weight Capacity:
- 500 to 1000 LBS
- Wheel Diameter:
- 3.01 - 4 Inches
- Wheel Material:
- Polyurethane
- Wheel Width:
- 2 Inches
- Color:
- Blue
- Overall Height Ranges:
- 5.0001 Inches - 6 Inches
- Weight Capacity Ranges:
- 501 - 1,000 lbs.
